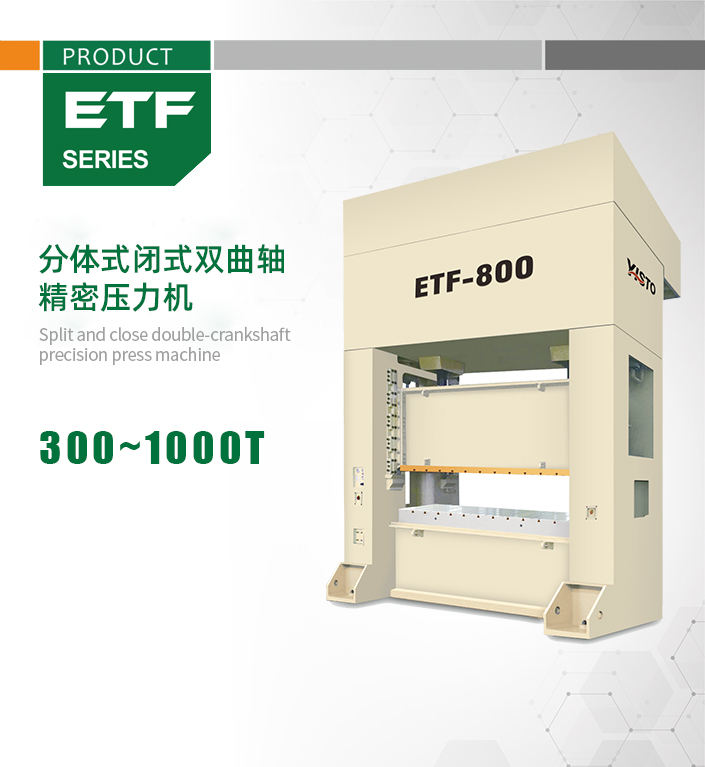

Split and close double-crankshaft precision press machine
Release date: 2024-08-15 15:29:17 Visits: 141
● Octahedral guiding of slider and long guide rail can guarantee operation precision.
● Hydraulic overload protection device and overload automatic emergency cut-off can protect safety of press machines and moulds, with convienent application.
Performance feature
● PLC electric interlocking control possesses sudden-stop, inch，single-pass, and continuous operation specifications.
● Dry pneumatic friction clutch is small in noise, large in clutching torque, small in braking angle, and convenient in maintenance.
● Body is closed structure, including beams, stand columns, and bases, which is strained with four tie bolts, with good rigidity(400-1200).
Standard configuration
|
● Oil-pressure overload device ● Variable frequency and speed motor (speed governing) ● Digital height indicator ● Slider and die balancing device ● Electronic cam switch device ● Prejudging counter ● Air source contact ● Second falling protector |
● Air blowing device ● Independent control cabinet ● Miss inspection device ● Main motor inversion set ● Photo-electricity safety protection device ● Imported electric butter lubricating device ● Power socket ● Touch(pre-cut, prejudge and total count) ● Die lighting device |
Optional configuration
|
● Induction hardening of slider guide ● Precision grinding ● Vapor-pressure die backer device ● Quick exchange of die device (die lifter, die clamper or die mover) |
● Cam top material device ● Feeder(air, machine and NC) ● Material frame ● Leveller ● Mechanical arm |
