Your location: Products >> Products >> Semi-closed single crankshaft precision punch

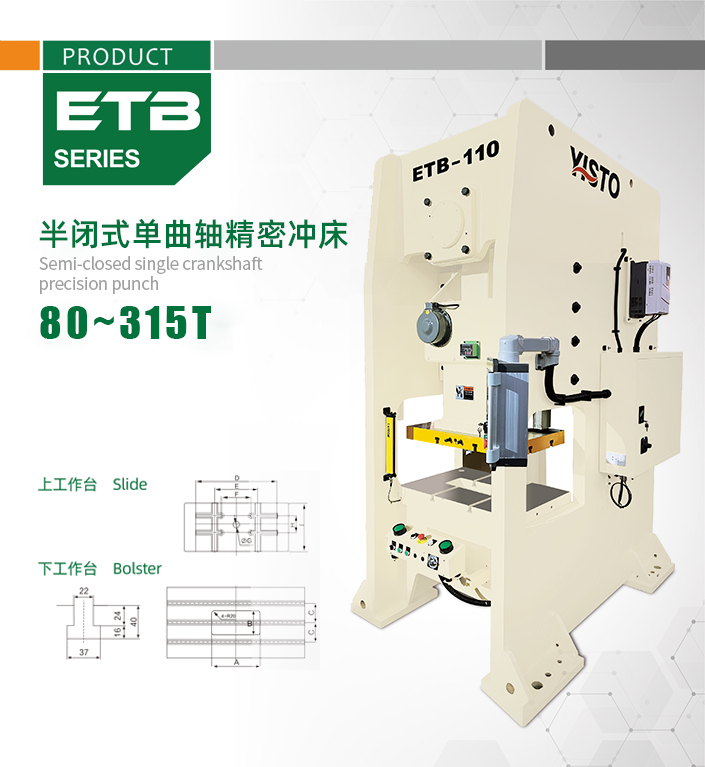

Semi-closed single crankshaft precision punch
Release date: 2024-08-15 13:27:35 Visits: 177
● With high rigidity design in machine frame, the machine is welded of high-quality steel sheets and treated by tension elimination to improve stability reliability of machine.
● Keep transmission center that of whole machine in conformity, to guarantee precision stability of pressing.
● In order to guarantee relative stability when machine is working, adopt design of symmetry of two balancers.
● The precision of mold adjustment is as high as 0.01mm, safe, convenient reliable.
● Reasonable physical design is convenient to realize automatic production, reduce cost increase efficiency.
Standard configuration
|
● Oil-pressure overload protection device ● Electrodynamic-type slider adjusting device ● Digital height indicator ● Slider and mold balancing device ● Counter ● Air source contact ● Crankshaft angle indicator ● Second falling protector ● Air blowing device |
● Mechanical quakeproof foot ● Miss inspection device ● Main motor inversion set ● Photo-electricity safety protection device ● Converter ● Electrodynamic-type butter lubricating device ● Die lighting device ● Touch screen control device |
Optional configuration
|
● Induction hardening of slider guide ● Precision grinding ● Die backer device ● Quick exchange of die device (die lifter, die clamper or die mover) |
● Cam top material device ● Automatic feeding device (feeder, Material frame, straightening machine) ● Foot switch ● Thin oil lubricating device |
