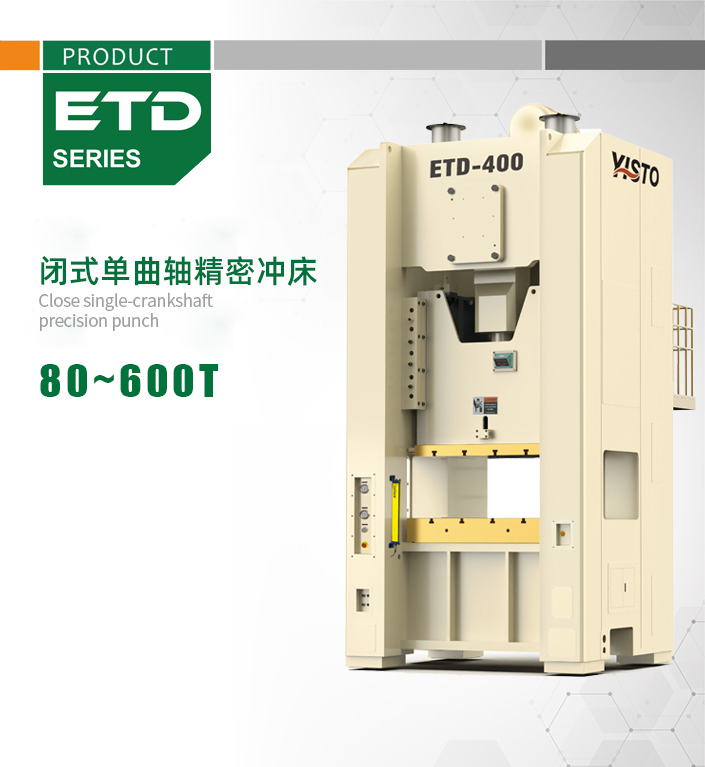

Close single-crankshaft precision punch
Release date: 2024-08-15 13:32:31 Visits: 184
● The high-strength fuselage structure has small deformation and high precision.
● In order to guarantee relative stability when the machine is working, adopt the design of symmetry of two balancers.
● The precision of mold adjustment is as high as 0.01mm, safe, convenient and reliable.
Performance feature
● Adopt highly sensitive and reliable clutch/brake units and international top duplex magnetic valves and overload protection device, to guarantee the precision and safety of press slider revolving and stopping.
● Reasonable physical design is convenient to realize automatic production, reduce cost and increase efficiency.
● Advanced design concept, low noise, low consumption and saving energy.
Standard configuration
|
● Oil-pressure overload protection device ● Electrodynamic-type slider adjusting device ● Digital height indicator ● Slider and die balancing device ● Counter ● Air source contact ● Electronic cam switch device ● Crankshaft angle indicator ● Second falling protector ● Air blowing device |
● Mechanical quakeproof foot ● Miss inspection device ● Main motor inversion set ● Photo-electricity safety protection device ● Converter ● Electrodynamic-type butter lubricating device ● Die lighting device ● Touch screen control device |
Optional configuration
|
● Induction hardening of slider guide ● Precision grinding ● Die backer device ● Quick exchange of die device (die lifter, die clamper or die mover) |
● Cam top material device ● Automatic feeding device (feeder, Material frame, straightening machine) ● Foot switch ● Thin oil lubricating device |
