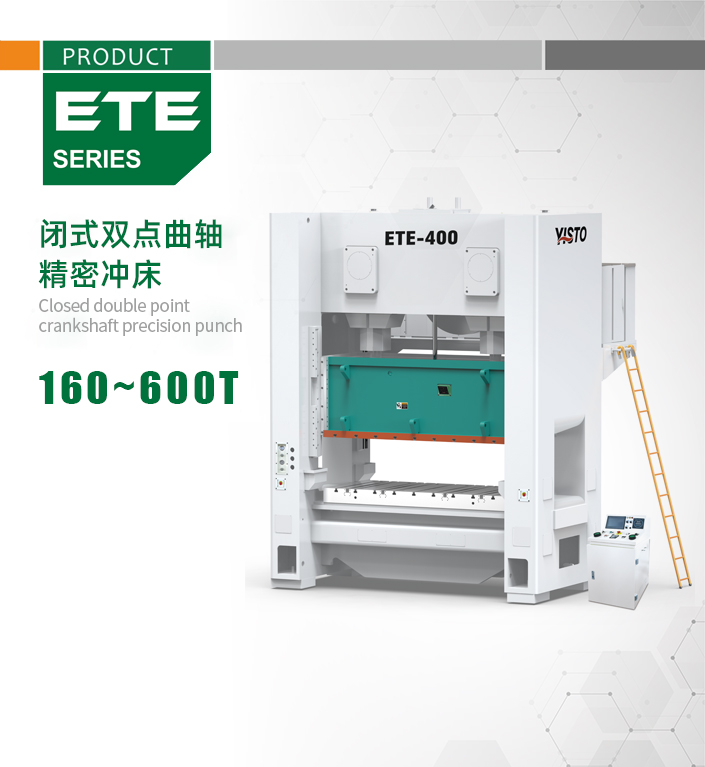

Closed double point crankshaft precision punch

Release date: 2024-08-15 13:43:01 Visits: 179

● The high-strength fuselage structure has small deformation and high precision.
● Standard touch screen, Siemens motor.
● Optional mat (air cushion).

Performance feature

● The use of forced thin oil circulation lubrication device: energy saving, environmental protection, with automatic alarm function, can increase the number of punching by adjusting the amount of oil.
● The slider adopts four-corner and eight-sided guides to carry large eccentric loads, ensuring long-term and stable maintenance of stamping accuracy.
● The slider guife adopts“high-frequency”Ten “rail grinding process”,which has small wear,high precision, long precision maintenance time and improved die life.

Standard configuration

● Oil-pressure overload protection device
● Electrodynamic-type slider adjusting device
● Electrodynamic height indicator
● Slider and die balancing device
● Crankshaft angle indicator
● Counter
● Air source contact
● Second falling protector
● Air blowing device
● Induction hardening of slider guide

● Precision grinding
● Mis-delivery detection device reserved interface
● Main motor inversion set
● Photo-electricity safety protection device
● Converter
● Touch screen control device
● Electric thin oil lubricating device
● Die lighting device
● The slider has four corners and eight sides
● High performance dry clutch

Optional configuration

● Vapor-pressure die backer device
● Quick exchange of die device
(die lifter, die clamper or die mover)
● Cam top material device
● Wet clutch

● Security door
● Automatic feeding device
(feeder, Material frame, straightening machine)
● Foot switch
