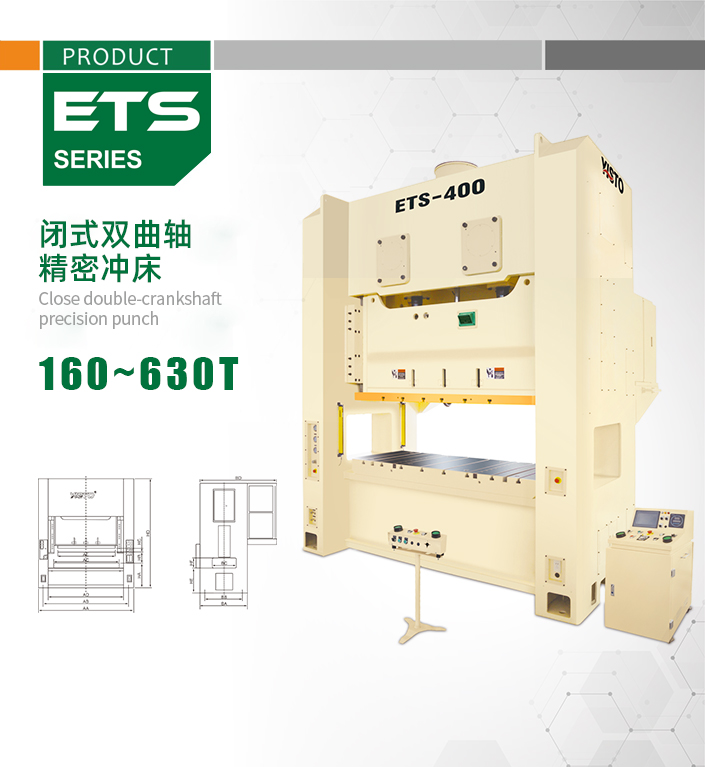

Close double-crankshaft precision punch
Release date: 2024-08-15 13:48:47 Visits: 192
● The high-strength fuselage structure has small deformation and high precision.
● The precision of mold adjustment is as high as 0.01mm, safe, convenient and reliable.
Performance feature
● Such parts as crankshaft, gear set and connecting rod, after hard oxidation, mill and other fabrication processing, have extreme comprehensive mechanical performance and durable function.
● Adopt highly sensitive and reliable clutch/brake units and international top duplex magnetic valves and overload protection device, to guarantee the precision and safety of press slider revolving and stopping.
● Reasonable physical design is convenient to realize automatic production, reduce cost and increase efficiency.
● Advanced design concept, low noise, low consumption and saving energy.
Standard configuration
|
● Oil-pressure overload protection device ● Electrodynamic-type slider adjusting device ● Electrodynamic height indicator ● Slider and die balancing device |
● Electronic cam switch device ● Crankshaft angle indicator ● Counter ● Air source contact ● Second falling protector ● Air blowing device |
● Mechanical quakeproof foot ● Miss inspection device ● Main motor inversion set ● Photo-electricity safety protection device ● Converter |
● Touch screen control device ● Electrodynamic-type butter lubricating device ● Die lighting device ● Induction hardening of slider guide ● Precision grinding |
Optional configuration
|
● Vapor-pressure die backer device ● Quick exchange of die device (die lifter, die clamper or die mover) ● Cam top material device |
● Automatic feeding device (feeder, material frame, straightening machine) ● Foot switch |
