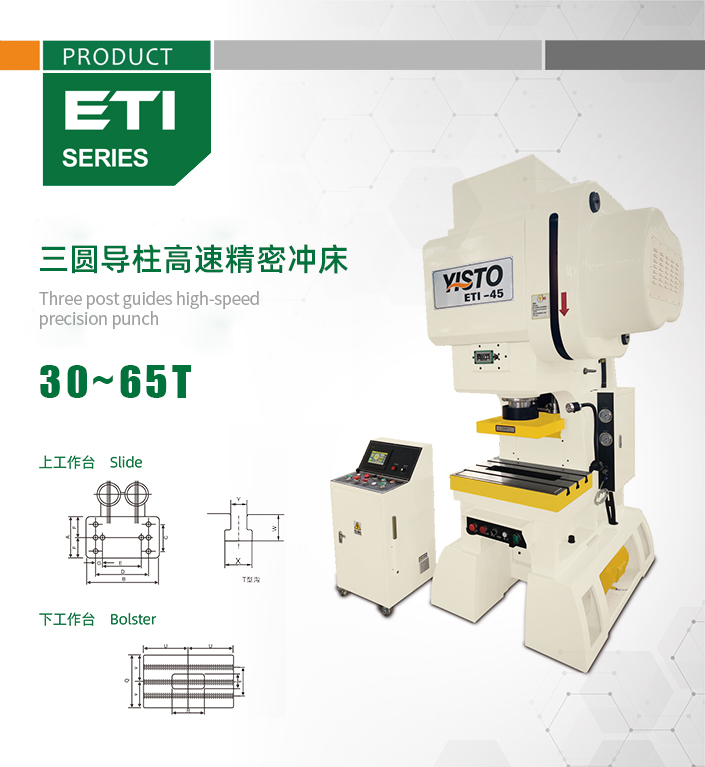

Three post guides high-speed precision punch

● It adopts integrative and high-strength casting machine, treated by tension elimination, to guarantee the long-term precision.
● The three post guides slider structure, adopts alloy steel bush and forced lubrication to minimize thermal change and maximize precision.

Performance feature

● The dynamic balance system controls stability of bottom dead center by shake produced by slider running up and balancing crankshaft.
● Manual height adjustment is equipped with the height indicator and oil pressure mode locking device.
● The human-computer interface (electronic cam +rotary encoder) is easy and accurate to use.
● Operating functions are integrated on the LCD and engine base malfunction can display automatically.
● Extremely sensitive clutch/brake units and top international duplex magnetic valves guarantee the precision and safety of punch slider revolving and stopping.
● The thorough electric loop design can match all kinds of automation equipment to produce automatically, reduce cost and increase efficiency.

Standard configuration

Optional configuration
