Your location: Products >> Products >> Gant Type Speed Precision Four Post Guider Press Machine

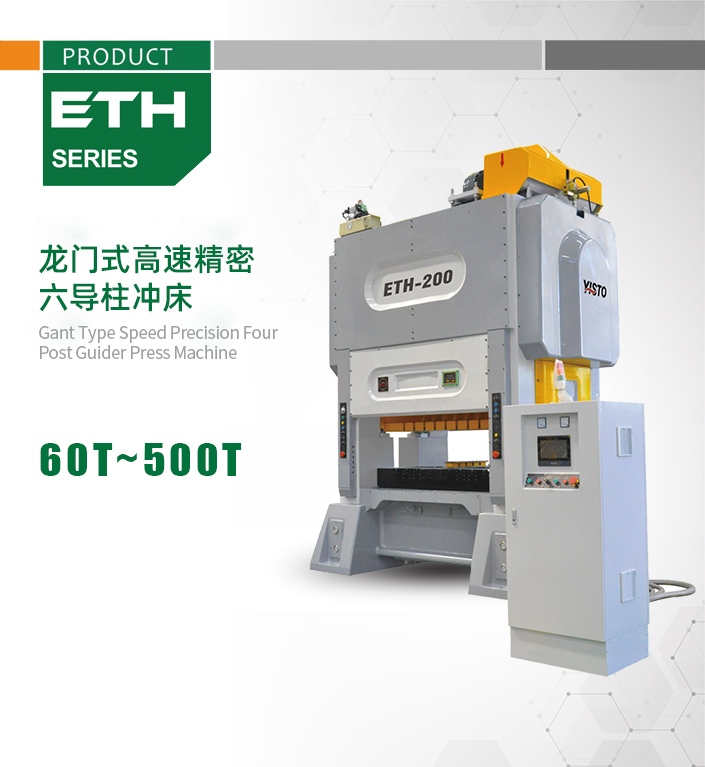

Gant Type Speed Precision Four Post Guider Press Machine
Release date: 2024-08-15 14:47:08 Visits: 134
● Frame structure, high alloy steel casting(by computer analysis to design the most suitable rack)after elimination of internal stress process, to further improve the precision the indispensable high rigidity rack, to achieve low vibration technology to improve mold life.
Standard configuration]
|
● Electric die height adiusting equipment ● Digital die height indicator(0.01mm) ● Micre inching function ● 30 sets memory for die setting data ● Three groups of batch control ● Group II misdeliveries detected ● Linkage, single action with 0° level 90° positioning function |
● Positive and negative reversing device of mainframe ● Hydraulic slide locking device ● Lubricant cooling device ● Italy Yu Yi integral clutch brake ● Independent electric control box ● Tool box ● Working light ● Host motor frequency conversion control |
Optional configuration
|
● Die height detector ● Hydraulic die clamping device ● Hydraulic die lifting device ● Hi-speed gear change feeder ● Double head un-coiler |
● Leveler &"S"loop control ● Anti-vibration mounts ● F-3SC stamping controller ● Two side sound proof safety door |
