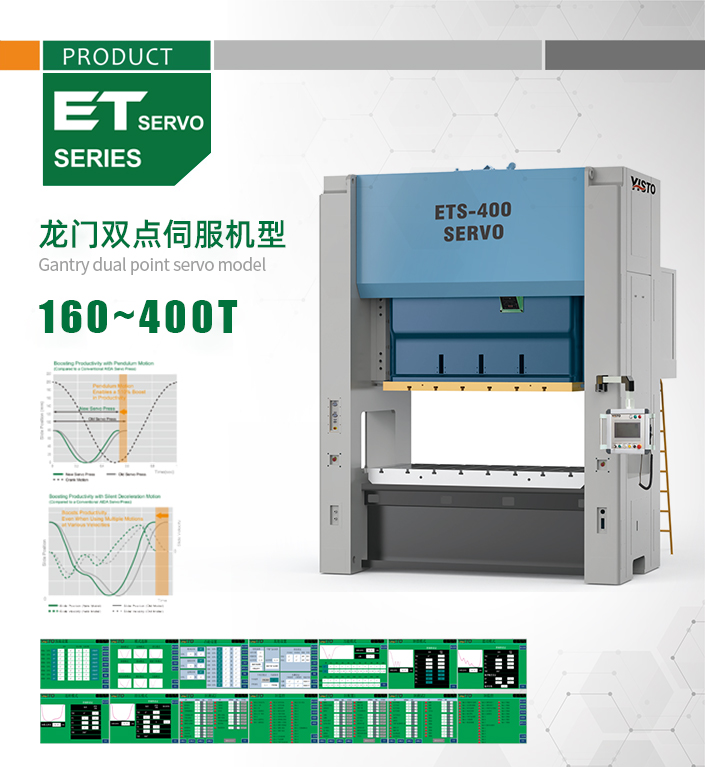

Gantry dual point servo model

● In order to realize the agile variable-speed motion and torque capability required for servo presses, our newly developed servo motor has been redesigned from a square motor. This redesign increased the maximum output by 150%.
● The servomotor is capable of low sliding speeds inside the forming zone and high sliding speeds outside the forming zone to realize “variable-speed motion,” resulting in better part formability and higher productivity. Various machining methods such as “pendulum motion” can now be used to realize high-speed production.
● The “Silent Deceleration” function allows a “soft touch” at the start of molding, significantly reducing molding noise and vibration and extending mold life. When the high-speed operation mode is selected, it is possible to achieve higher productivity through full-stroke or longitudinal motion while maintaining the same speed in the molding zone.

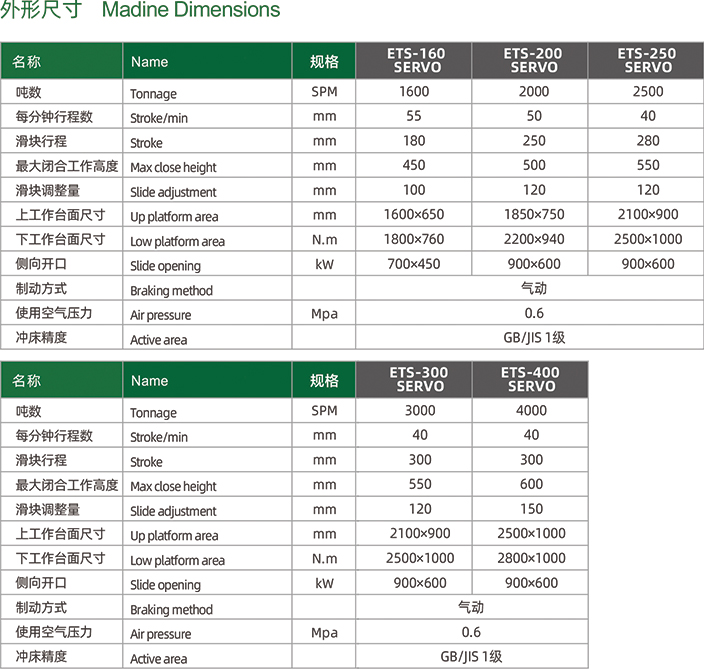

Performance feature

● Flexibility: suitable slide movement patterns can be obtained, expanding the adaptability of equipment processes;

● High quality: with low-speed stamping and holding functions, the cross-section and molding quality of products are greatly improved.
● High quality: with low-speed stamping and pressure-holding functions, the cross-section and molding quality of products are greatly improved.
● High efficiency: Compared with traditional presses, the speed of the empty stroke is increased at the same contact speed, which greatly improves the production efficiency.
● Intelligent: Integrated tonnage protection function, specific tonnage protection value can be set at each point;
● High safety: electromagnetic reverse torque + holding brake, greatly shortening the braking time; PLC logic control and servo drive logic dual redundant control, higher safety; and
● Sufficient low-speed processing capability: overcoming the phenomenon of insufficient low-speed capability of traditional presses, it can improve the formability of slow stretching; ● Improvement of mold life: it can reduce the number of molds, and reduce the number of presses with low speed.
● Improvement of mold life: it can reduce the speed at which the mold hits the pressed material and improve the life of the mold; Energy saving: the dynamic brake feedback unit recovers and stores energy efficiently, and the cost of electricity is low;
● Environmental protection: simplified transmission structure, transmission noise is greatly reduced; optimized slider movement pattern, reducing process noise, greatly improving the production environment;
● Convenient operation: 100 kinds of mold information can be memorized, and the slider movement mode can be called up on the screen; equipped with handwheel fine-tuning function, which greatly shortens the debugging time.
